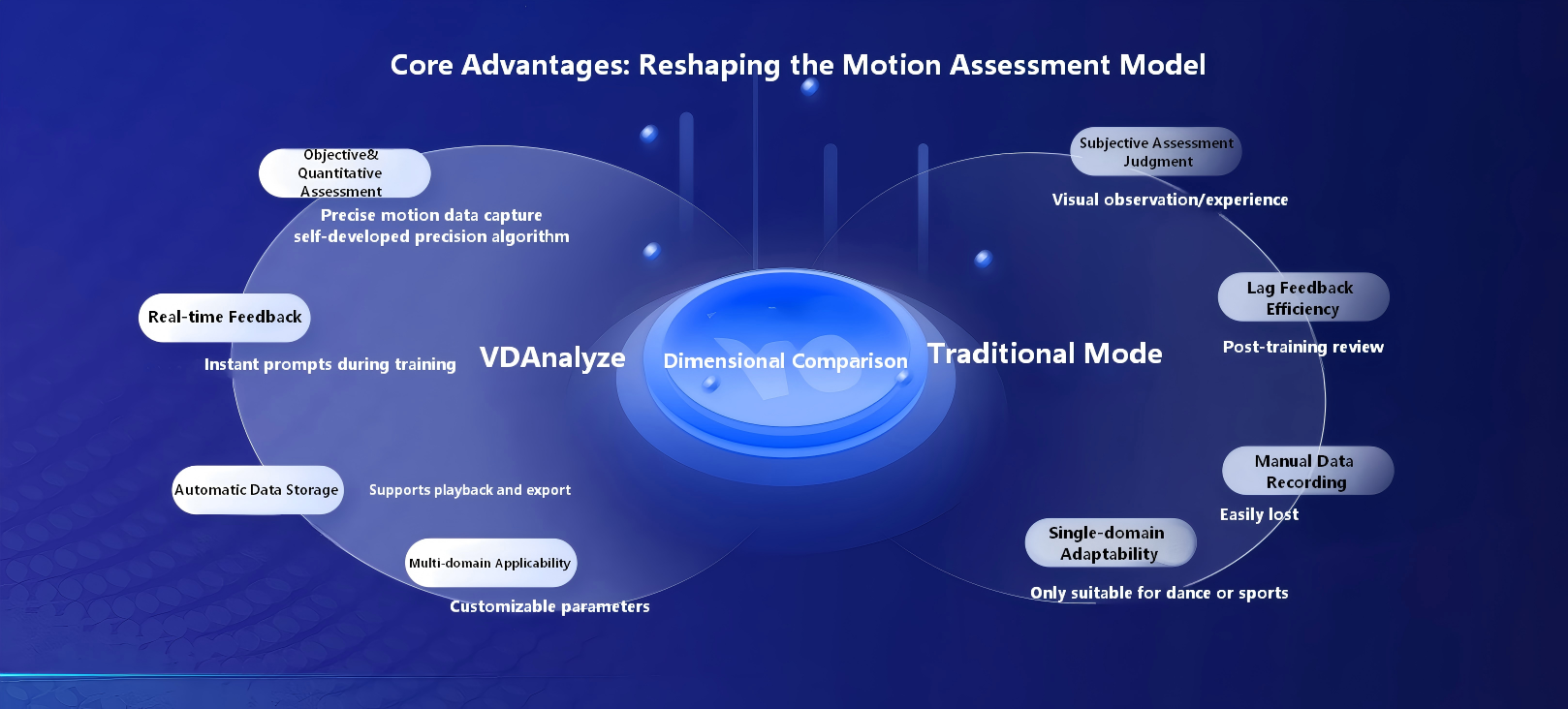

Core Advantages – Reshape Motion Evaluation

● Objective & Quantified Assessment: Precise motion capture + proprietary high-accuracy algorithms

● Real-Time Feedback: Instant prompts during training

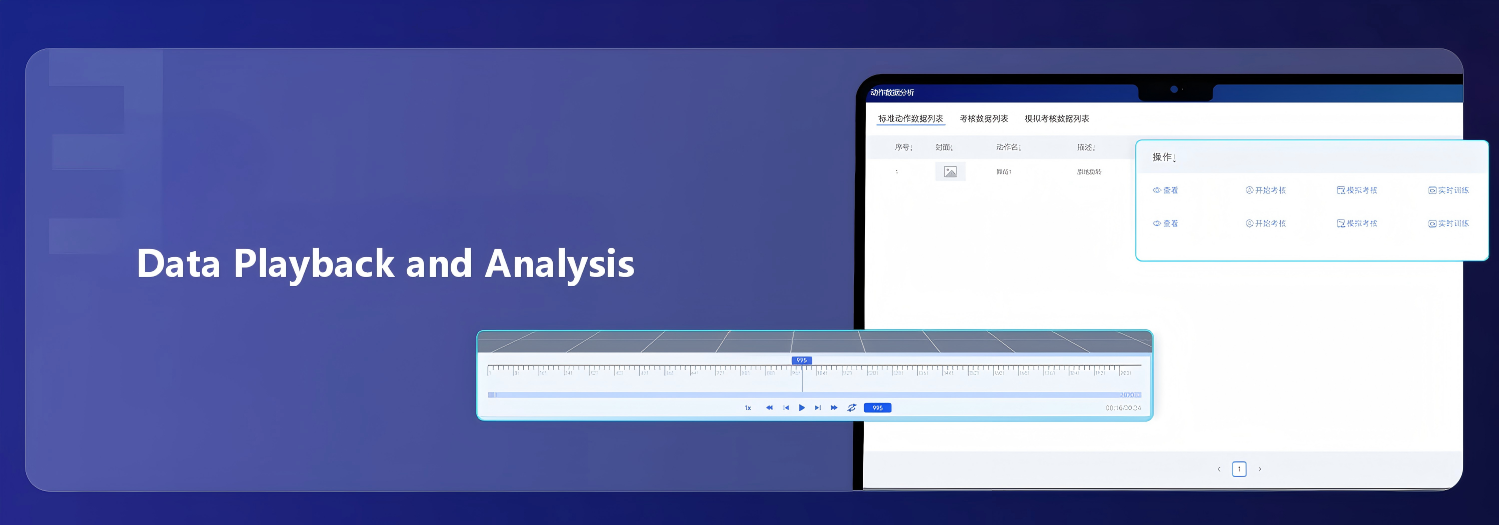

● Auto Data Storage: Supports playback and export

● Cross-Field Universal: Customizable parameters for multiple scenarios

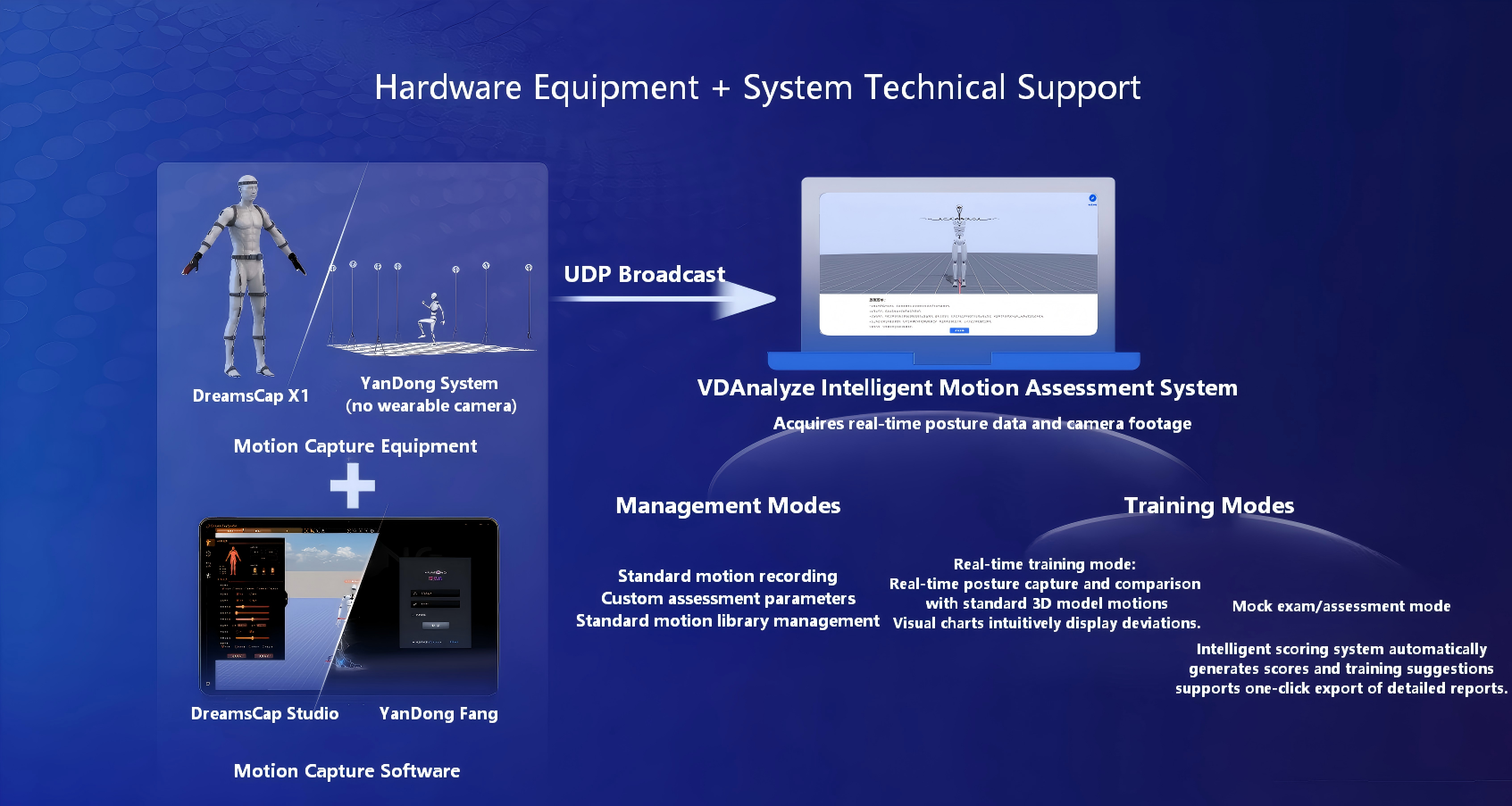

System Composition

VDAnalyze is supported by two core parts: Motion Capture System and Software Evaluation System, providing a complete end-to-end solution for intelligent motion analysis.

1. Motion Capture System

You can choose either of the two professional capture solutions according to your scenario needs:

Hardware Options

DreamsCap X1 (High-precision inertial motion capture suit)
YanDong System (Markerless vision-based capture, no wearable devices required)

Supporting Software

DreamsCap Studio (for DreamsCap X1)
YanDong Fang (for YanDong System)

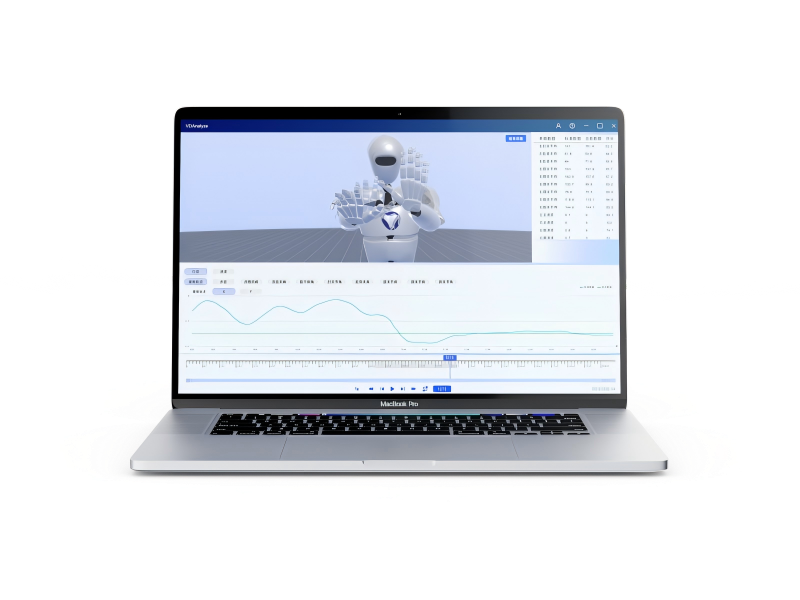

2. VDAnalyze Software System

VDAnalyze – Visualized Intelligent Motion Data Evaluation System supports dual-mode switching for flexible management and training.

Management Mode

Record standard demonstration movements
Customize assessment parameters and scoring rules
Manage the standard motion library efficiently

Training & Assessment Mode

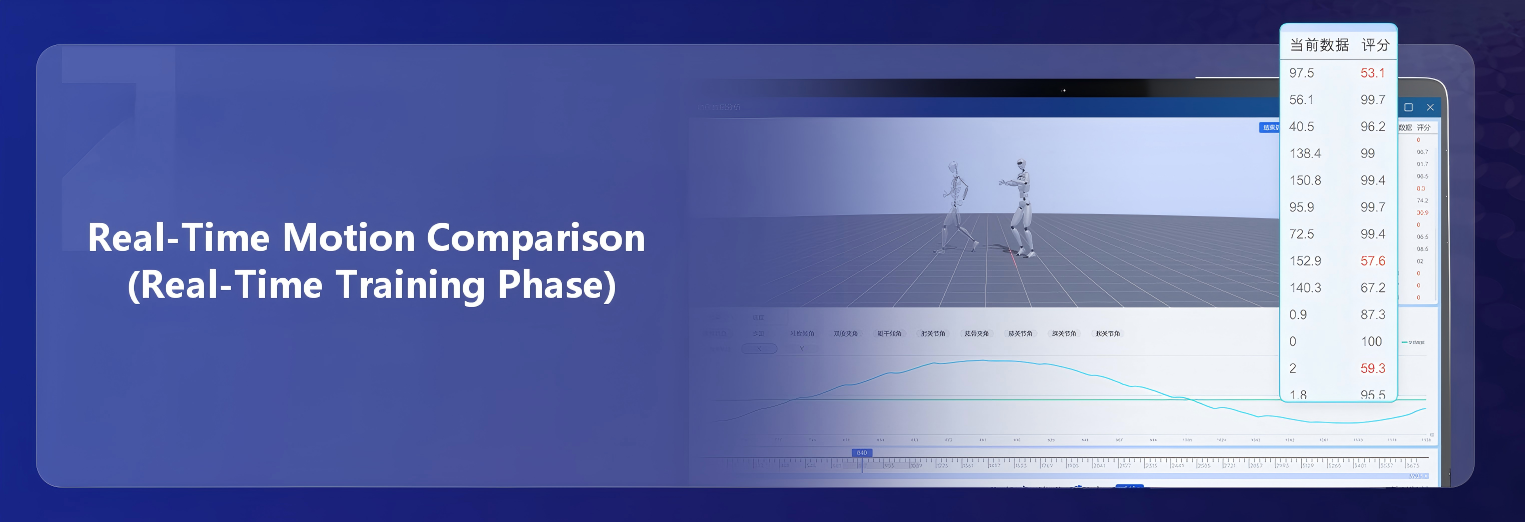

Real-Time Training Mode

Real-time comparison between captured poses and 3D standard models
Visual charts clearly show motion deviations
Instant feedback for accurate correction

Mock Exam / Formal Assessment Mode

Intelligent scoring system automatically generates ratings and targeted training suggestions
One-click export of detailed assessment reports

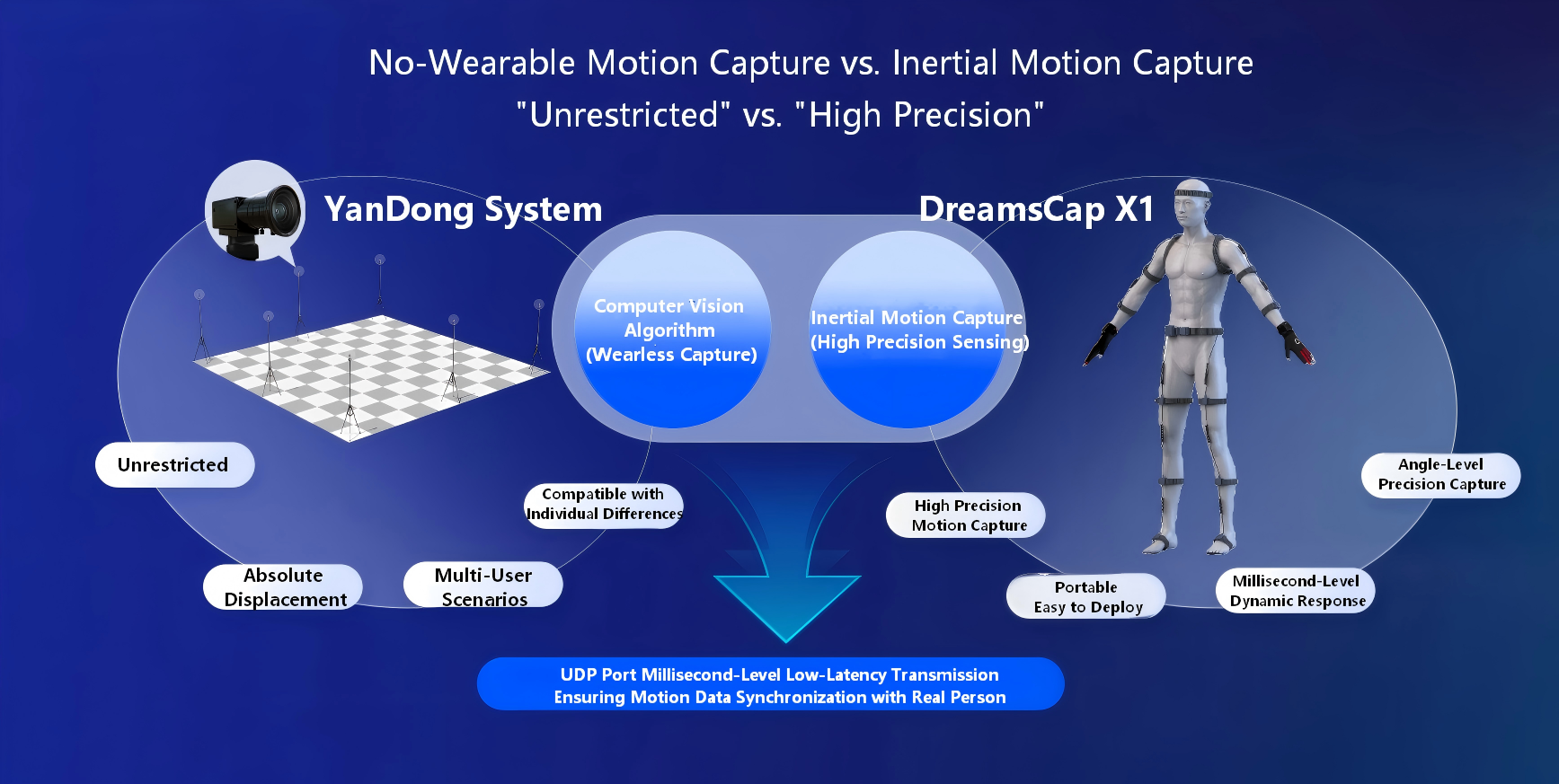

How to Choose the Right Motion Capture System for You?

YanDong Markerless Vision System vs. DreamsCap X1 Inertial System

Freedom Without Wearables • Precision Without Compromise

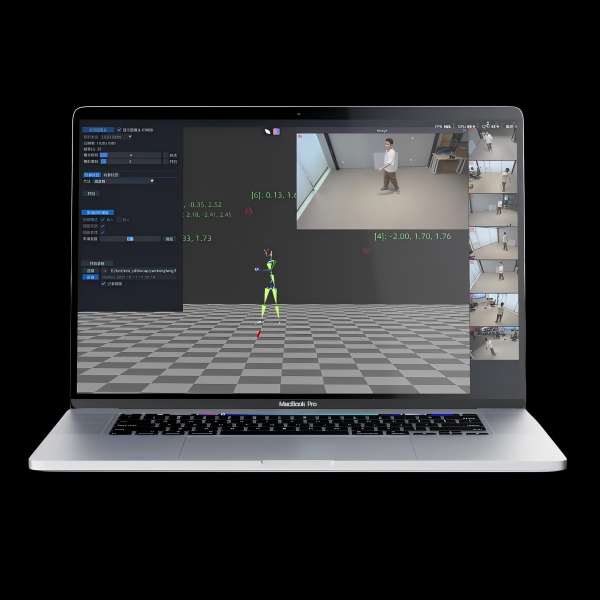

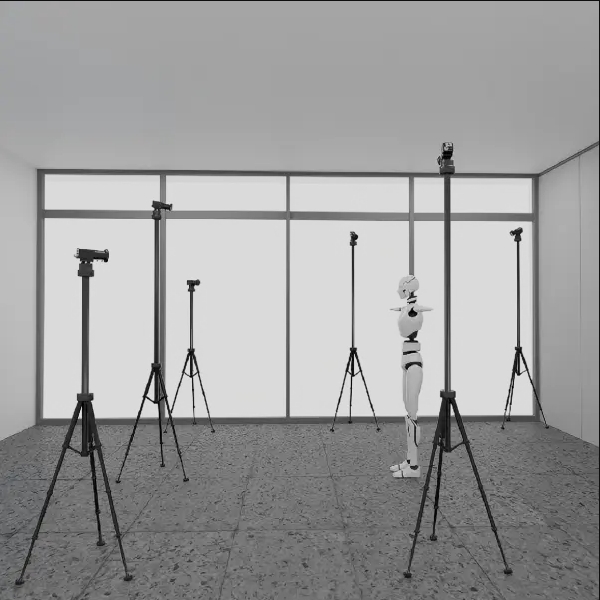

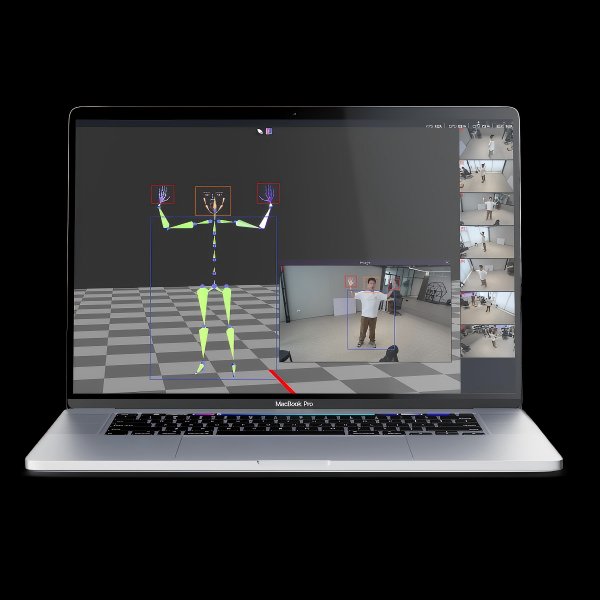

YanDong System – Markerless Vision Capture

Powered by advanced computer vision algorithms, YanDong delivers completely unrestricted motion capture with no wearable devices required.

● Truly markerless, no wearables

● Unconstrained movement

● Absolute displacement tracking

● Supports multi-user scenarios

● Adapts to individual body differences

Item	Details
Truly Markerless	No suits, no markers; capture 1–2 performers simultaneously in a 4m × 4m capture area
Comprehensive Capture	Full-body tracking + precise hand movements + facial expression capture in one system
Pipeline Integration	Real-time UDP streaming; native plugins for Unity, Unreal Engine, Maya, Blender, MotionBuilder, iClone; supports FBX / BVH / CSV export
Professional Hardware	7 × 3.2MP color global-shutter cameras; ultra-wide low-distortion lenses; synchronized capture at 60 fps
All-in-One Package	Complete kit: cameras, calibration tools, software, and technical support for fast deployment
Ideal Use Cases	Animation studios, game development, VFX production, creative motion projects

Camera Specifications (VIRDYN-YDC-V2)

Item	Details
Sensor	3.2MP Color CMOS Global Shutter
Resolution	2048 × 1536 @ 60 fps
Pixel Size	3.45 μm × 3.45 μm
Lens	C-mount, ultra-wide-angle, distortion < 0.5%
FOV (H×V)	82° × 66°
Interface	Gigabit Ethernet (GigE Vision), PoE supported
Operating Temperature	-30°C ~ 60°C
Convenience	Clearly labeled cameras for fast setup

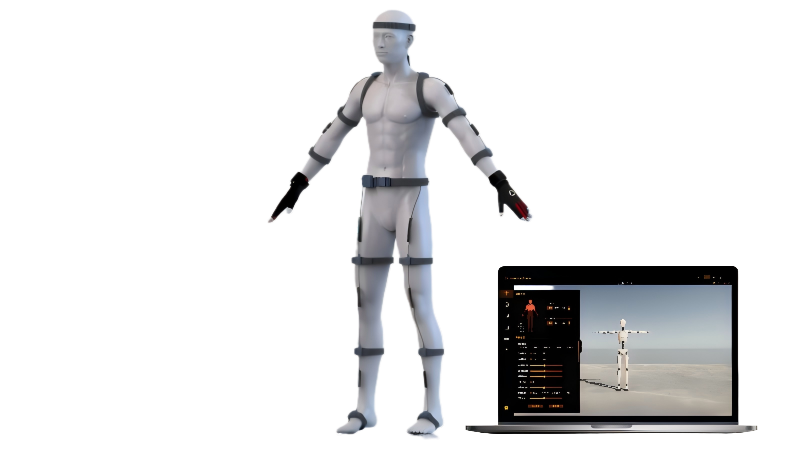

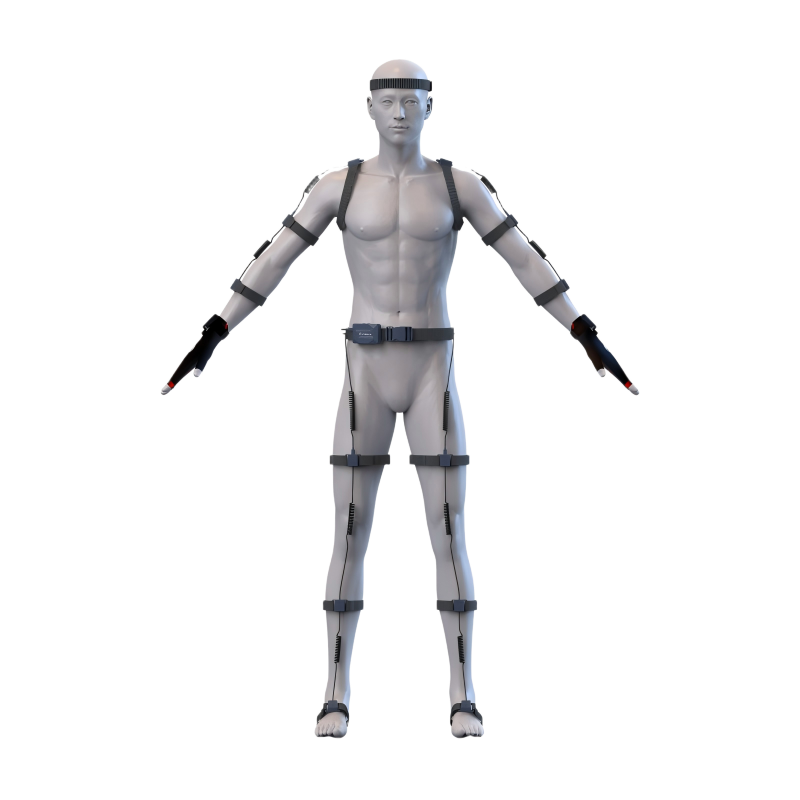

DreamsCap X1 – High-Precision Inertial Motion Capture

DreamsCap X1 uses high-performance inertial sensing technology to deliver sub-degree precision for professional, detailed motion capture.

● Ultra-fine motion capture

● Portable and easy to deploy

● Millisecond‑level dynamic response

● Angle‑level high-accuracy tracking

● Stable, reliable, and interference-resistant

Item	Details
Skeleton Tracking	31 key full-body skeletal nodes
Weight	≤870g (with gloves); body and finger modules separable
Material	Breathable, high-elastic nylon; adjustable straps; washable gloves
Sensors	32×9‑DoF high-precision IMUs
Battery	Li‑Po battery; 5V; ≥8 hours (supports charging while in use)
Transmission	2.4GHz adaptive frequency hopping; ≥90m open range
Latency	＜16ms
Frame Rate	60/72/80/96/120 Hz
Sensor Refresh Rate	≥1000Hz (body); ≥800Hz (gloves)
Pose Accuracy	ROLL<0.5°, PITCH<0.5°, YAW<1.5°
Angular Resolution	＜0.02°
Gesture Recognition	18 high-precision hand gestures
Multi‑User	Supports up to 5 people simultaneous capture

DreamsCap X1 Key Specifications

Item	Details
Acceleration Range	±16G
Gyro Range	±2000dps
Magnetic Range	±4.9Gs
Power	5V DC
Working Environment	Indoor & stable outdoor spaces
Recommended Distance	≤10m (Wi‑Fi dense environment)

VDAnalyze Detailed Function Introduction

I. Management Mode

Designed for assessment administrators, the Management Mode provides a visualized data management platform for creating complete evaluation systems, including assessment rules, standard movements, and scoring criteria (collectively referred to as the Standard Motion Library).

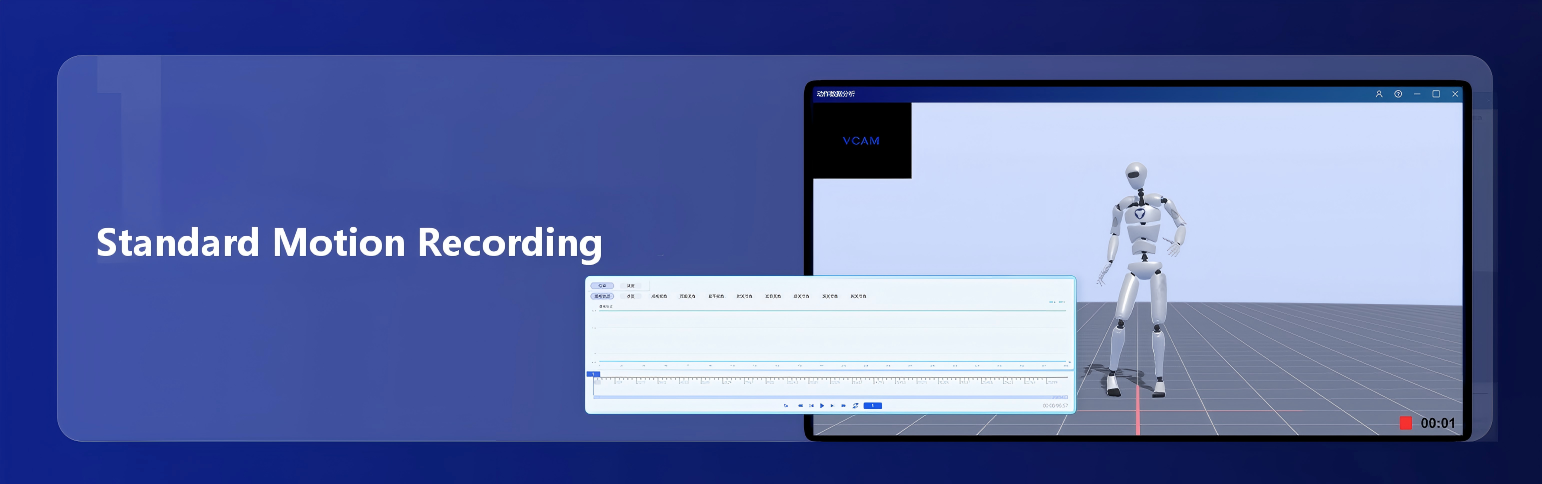

1. Standard Motion Library Recording

Supports real-time camera capture and motion data recording
Visualized motion data analysis and profiling
Customizable editing of assessment rules and evaluation content
Flexible trimming and editing of recorded motion data

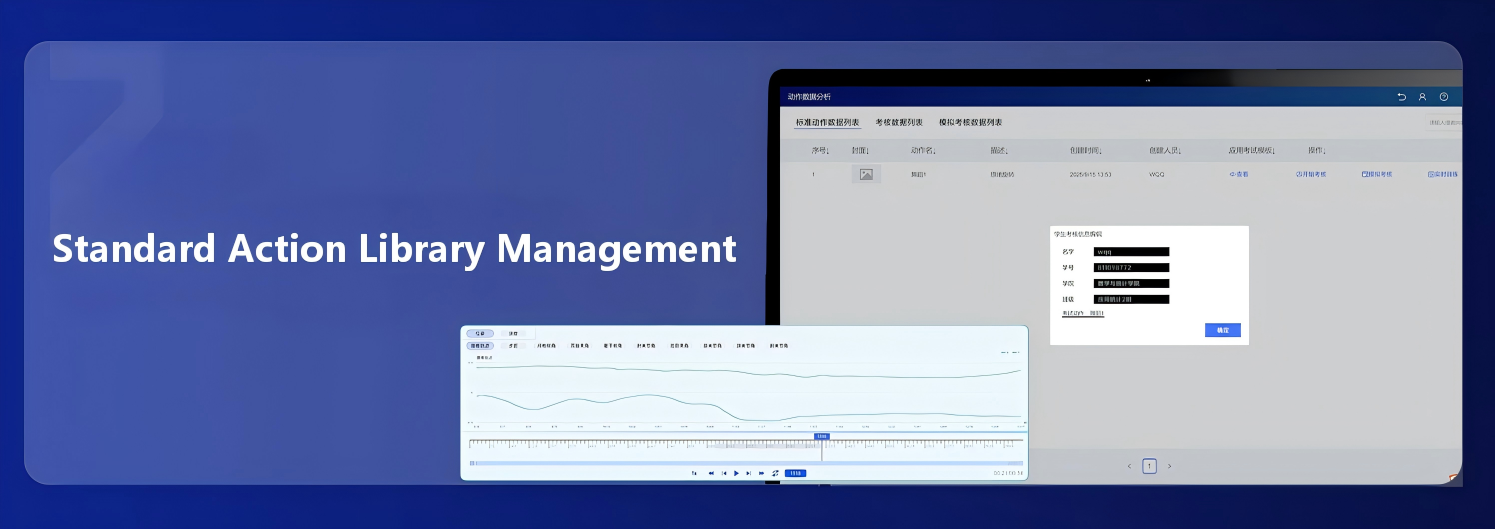

2. Standard Motion Library Management

Stores historical motion and assessment data
Supports uploading of standard motion datasets
Allows viewing, searching, and deleting motion records
Supports redefining and updating assessment content

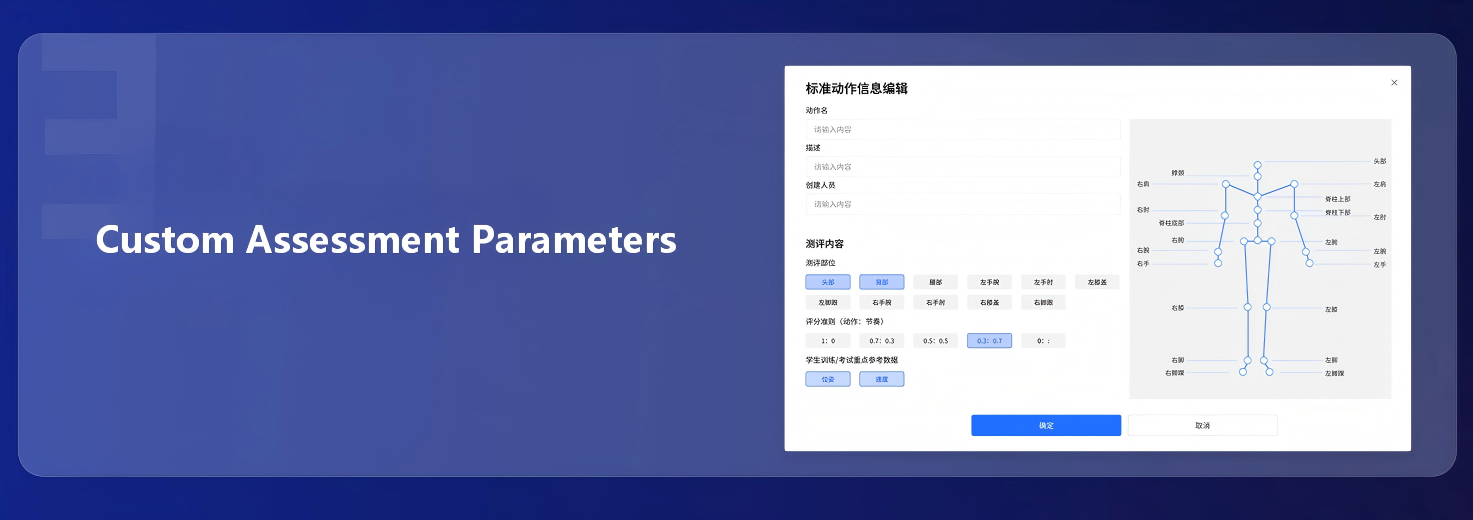

Customizable Assessment Parameters

Evaluation Body Parts

Waist, back, left/right knee, left/right heel, left/right elbow, left/right wrist

Scoring Weight Rules

Customizable motion-rhythm scoring ratio: 10:0, 7:3, 5:5, 3:7, 0:10

Key Assessment Metrics

Posture Metrics: lumbar trajectory, step width, craniovertebral inclination, elbow joint angle, humeral angle, knee joint angle, hip angle, ankle angle, torso inclination, wrist joint angle
Velocity Metrics: elbow angular velocity, knee angular velocity, ankle angular velocity, hip angular velocity, left/right wrist and foot velocity

II. Training & Assessment Mode

This mode serves as an all-in-one learning and evaluation platform for trainees, while enabling managers to monitor training progress. It includes three modules: Formal Exam, Mock Exam, and Real-Time Training.

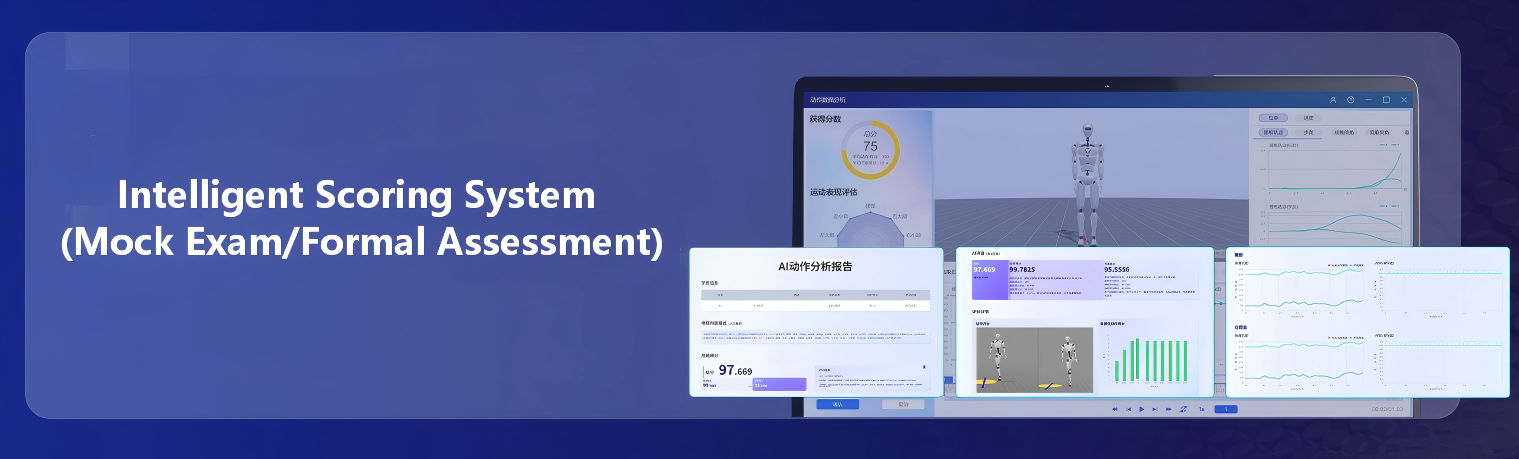

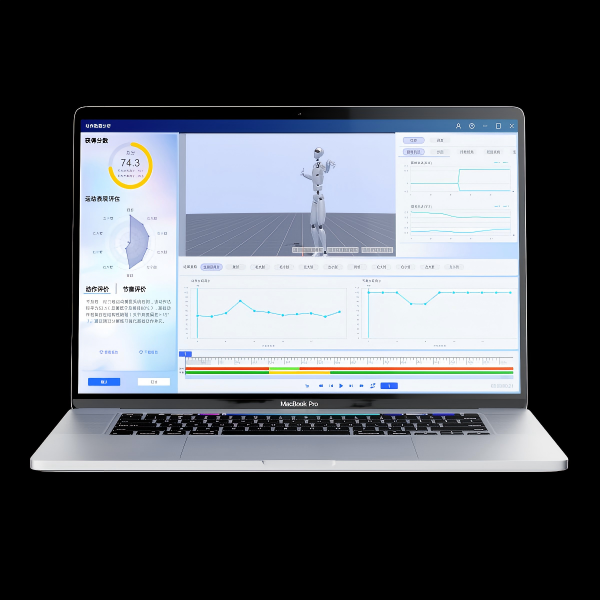

1. Intelligent Scoring System

After formal or mock exams, the system automatically generates motion scores and multi-dimensional evaluation data with one-click detailed report export.

Key indicators include:
