Humanoid Robot Intelligent Voice Interaction Development Kit
The Humanoid Robot Intelligent Voice Interaction Development Kit integrates the high-performance Smart Voice Engine Backpack and Smart Vision Helmet to build a unified multi-perception system combining voice, vision, and navigation. It forms a complete closed loop of robot environmental cognition, understanding, and interaction.
This kit supports rapid deployment in exhibition halls, government service centers, entertainment, education, retail, tourism and other human-machine interaction scenarios, empowering humanoid robots with smarter, more natural interactive capabilities.
Core Advantages
Cross-Brand Flexible Compatibility
- Compatible with multiple brands and form factors of humanoid robots
- Provides standardized integration interfaces and deployment solutions
- Fast application integration, significantly reducing docking costs
Scenario-Based Intelligent Adaptation
- Automatically matches module combinations according to different scenarios
- Greatly improves system stability and versatility
- Adaptable to commercial, service, and industrial robot scenarios
Core Advantages
Cross-Brand Flexible Compatibility
- Compatible with multiple brands and form factors of humanoid robots
- Provides standardized integration interfaces and deployment solutions
- Fast application integration, significantly reducing docking costs
Scenario-Based Intelligent Adaptation
- Automatically matches module combinations according to different scenarios
- Greatly improves system stability and versatility
- Adaptable to commercial, service, and industrial robot scenarios

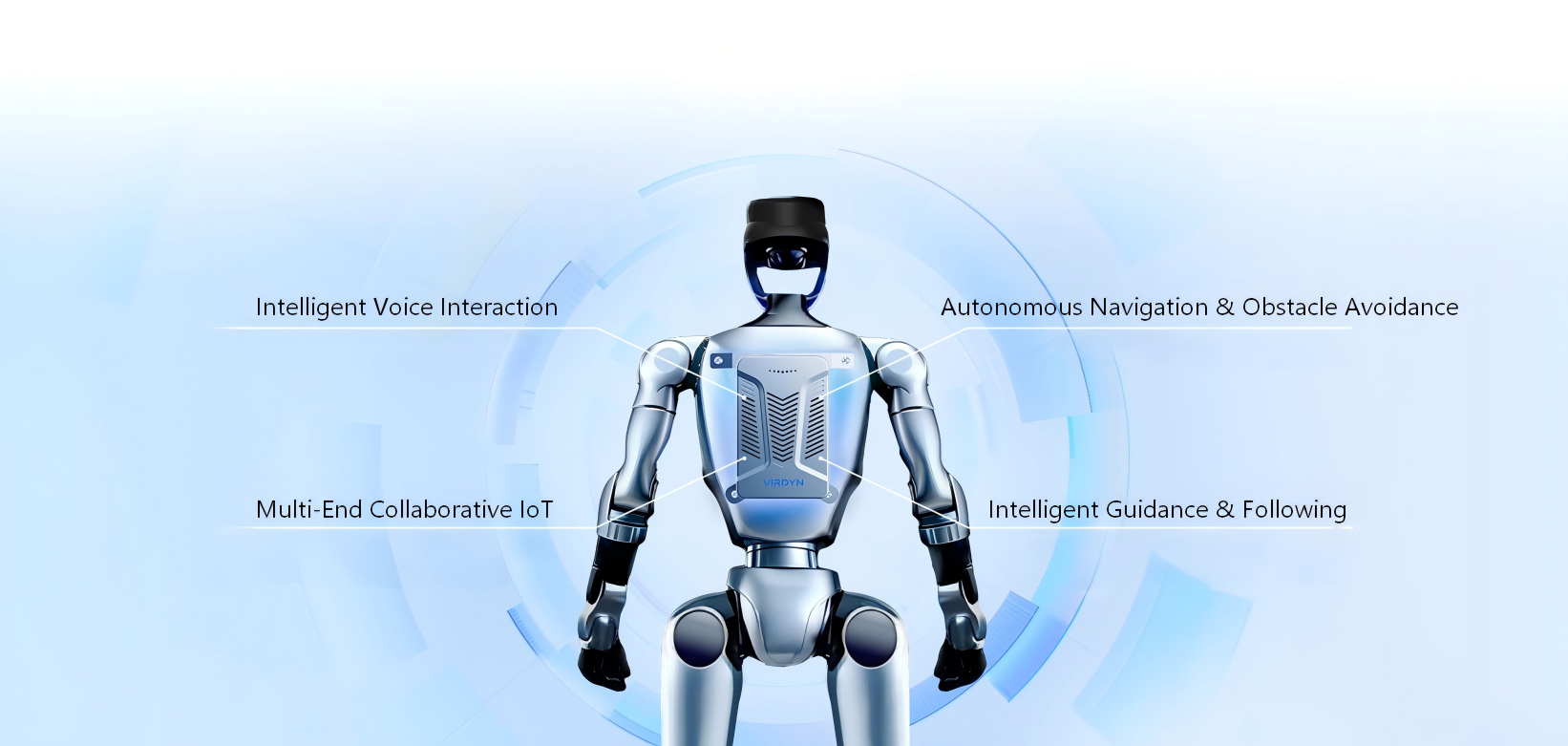

Core Functions
-
Intelligent Voice Interaction
- Built-in large language model, supports multi-language & minor languages
- High-precision speech recognition
- Humanoid voice conversation
- Edge computing module for on-board model deployment and extended computing power
-
Autonomous Navigation & Obstacle Avoidance
- Centimeter-level real-time environmental perception
- Precise obstacle detection and recognition
-
Multi-End Collaborative IoT
- AI voice control for screen, program playback and switching
- Extensible linkage with elevators, sensors, access control and other devices
- Full-scenario intelligent solutions
-
Intelligent Guidance & Following
- Precise target recognition and intelligent tracking based on vision
- Proactive and convenient scene services
Performance Features
- High-Performance CPU: RK3588 octa-core 64-bit 8nm process, up to 2.4GHz
- Rich Interfaces: Multiple display, network and communication interfaces open for use
- Strong Extensibility: Supports USB2.0, USB3.0, TTL, RS232, RS485, SPK, CAN, GPIO, SATA, PCIe3.0x2
- Dual System Support: Android & Linux; supports customization, system optimization and secondary development with source code examples
- Ideal for APK development and robot application creation
Core Modules & Specifications

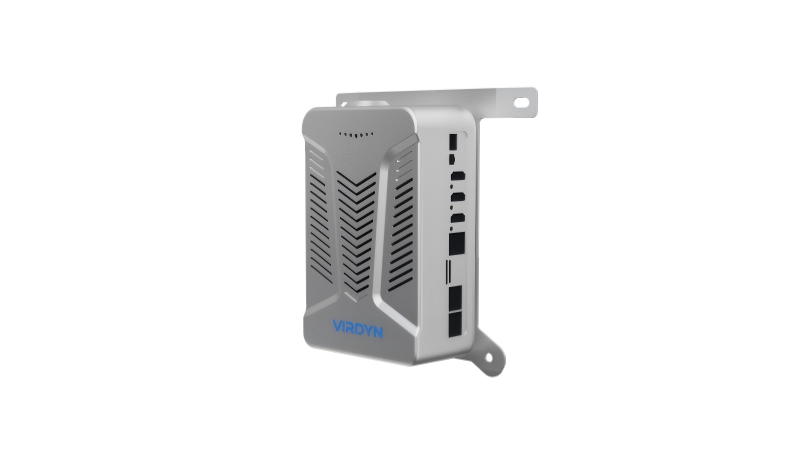

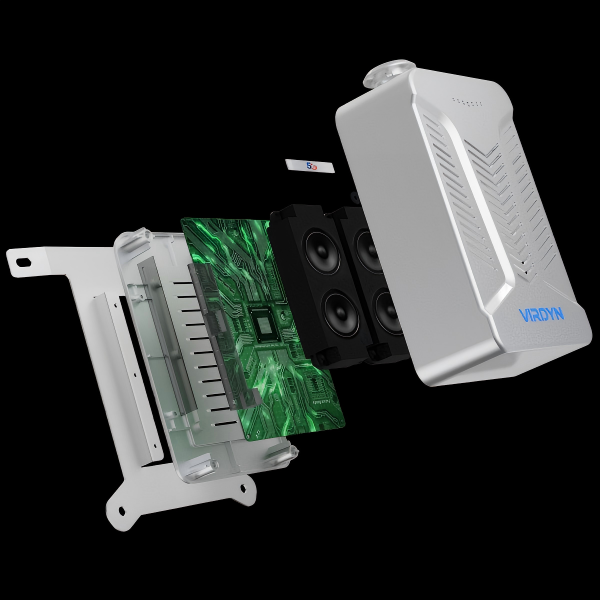

1. Smart Voice Engine Backpack
| Item | Details |
|---|---|
| Weight | ≤500g |
| Material | ABS 8220 + Aluminum Alloy 5052 |
| CPU | Octa-core 64-bit, up to 2.4GHz |
| GPU | ARM Mali-G610 MP4, 450 GFLOPS |
| NPU | Up to 6 TOPS, supports INT4/INT8/INT16 mixed computing |
| Connectivity | Dual-band Wi-Fi 6, Bluetooth 5.0, 5G/4G LTE optional |
| Audio | 10W dual speakers |
| Power | 12V (robot power or independent supply) |
| Operating Temperature | -10℃ ~ 50℃ |
| Connection | Multi-port compatible; M6 screws for non-destructive installation |

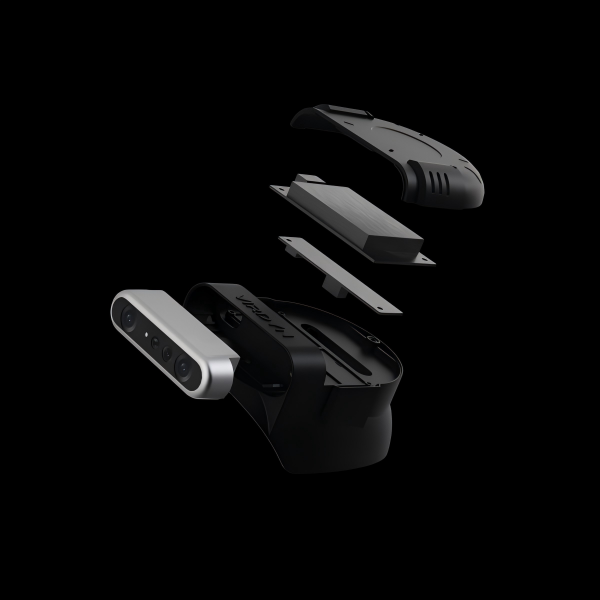

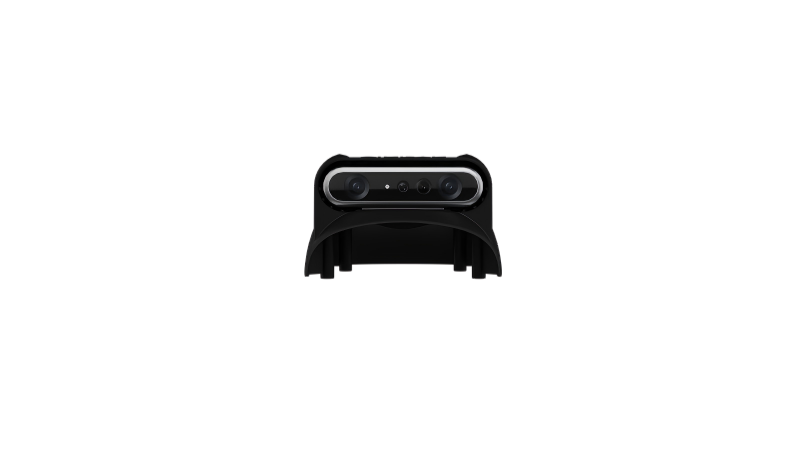

2. Smart Vision Helmet
| Item | Details |
|---|---|
| Weight | ≤200g |
| Material | Polyamide (Nylon PA) |
| Pickup Distance | >8m omnidirectional |
| Noise Reduction | In-house audio denoising & echo cancellation |
| Voice | Multi wake words + offline speech recognition |
| Camera | RGBD + dual IR depth, 1280×720 |
| Power | 5V (powered by backpack) |
| Connection | Type-C + original robot screws |
| Operating Temperature | -10℃ ~ 50℃ |
Application Scenarios
- Exhibition Halls: Active guidance + professional explanation + personalized interaction
- Government Service Halls: Custom government knowledge base for intelligent civil services
- Entertainment & Performance: Theme‑based shows for galas, ceremonies and events
- Schools: Education, demonstration and tech popularization
- Stores & Malls: Welcome, guidance and promotion
- Tourist Attractions: Intelligent guide and interaction
- Factories & Enterprises: Inspection, training and on‑site services
